Clip‑in Recessed Concealed Aluminium Skirting (specially engineered for gypsum‑board drywall & steel stud partition walls)

Short Description:

Recessed Concealed Aluminium Skirting Board for Gypsum‑Board / Drywall Partition /

Send email to us

Product Detail

Product Tags

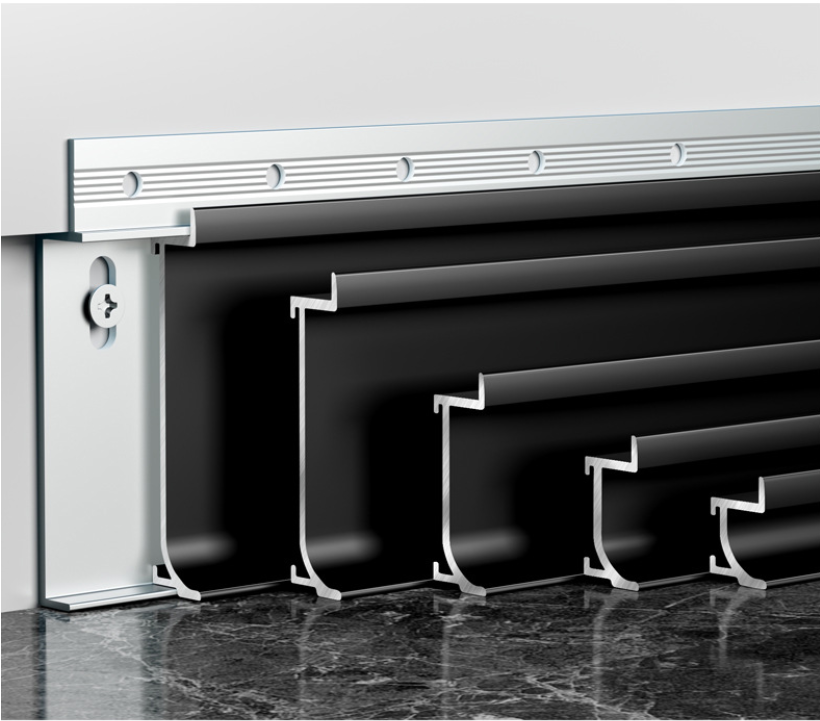

This two‑piece clip‑on concealed skirting system consists of a fixed embedded base profile and a detachable decorative cover panel. It is purpose‑built for gypsum‑board drywall constructions, solving common pain‑points such as poor load‑bearing capacity of gypsum paper surface, loose fixing, plaster cracking and difficult maintenance. Mounted during the gypsum‑board installation phase, it delivers a minimalist flush‑to‑wall appearance without protruding from the wall surface, widely adopted for modern residential apartments, villas, offices and commercial interiors.

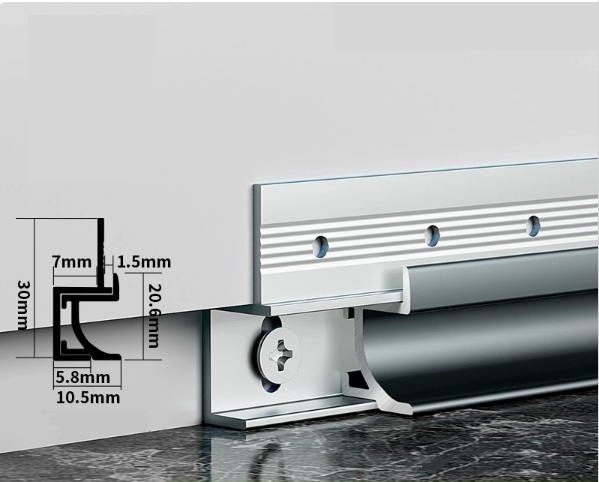

Model S7020 in Grey Color

Model S7030 in Brass Color

Model S7040 in Black Color

Model S7050 in Brass Color

Model S7060 in Brass Color

Key Features for Gypsum‑Board Drywall Application

1. Two‑piece clip‑in structural design

The base profile is mechanically fastened directly onto steel studs / wall framing instead of only onto gypsum‑board paper surface, avoiding falling‑off risks caused by gypsum’s low surface strength. Decorative cover panel simply clips onto the pre‑fixed base. The cover can be removed individually for repair or replacement without damaging gypsum wall and plaster finish.

2. Anti‑cracking solution for drywall joints

Reserved flange for embedding fiberglass anti‑cracking mesh at the base profile edge, effectively reducing plaster cracking at gypsum wall bottom, a frequent failure point for ordinary plaster‑in one‑piece profiles on drywall.

3. Optimized gap‑covering function

Extended lower overhang flange tolerates installation gaps between wall and flooring (5‑12 mm), covering uneven edges of tiles, laminate or timber floors.

4. Moisture‑resistant performance

High‑grade aluminium profile prevents water‑damage deformation. Internal drainage groove design blocks mopping water from penetrating into gypsum‑board base, protecting drywall from damp rotting.

5. Durable premium aluminium material

Made from 6063‑T5 extruded aluminium alloy. Base profile ≥1.0 mm thickness for stable mechanical fixing; decorative cover ≥1.2 mm thickness, impact‑resistant against daily collision. Rejects recycled inferior aluminium which causes oxidation and deformationAlibaba.co....

6. Versatile surface finishes

- Powder‑coated (matte finish 5‑15° gloss): Anthracite Grey RAL7016, Traffic White RAL9016, Jet black RAL9005;

- Anodized: Natural silver, Matt Brass, Matt Black;

Custom RAL colour orders are supported. High‑film‑thickness coating resists scratching and fading for long‑term indoor usage.

Available Specifications

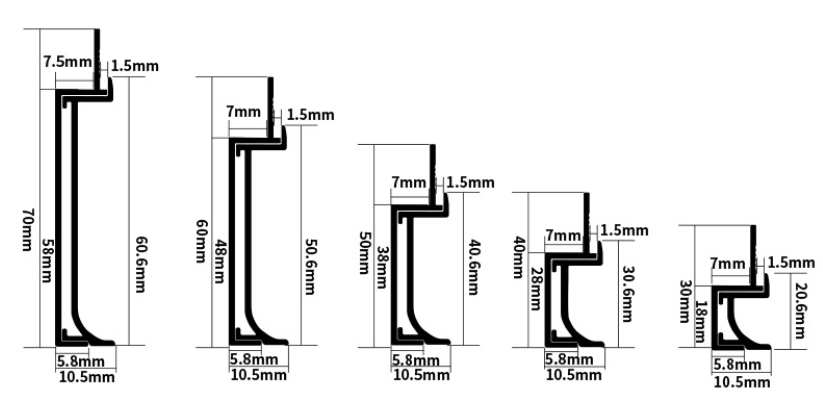

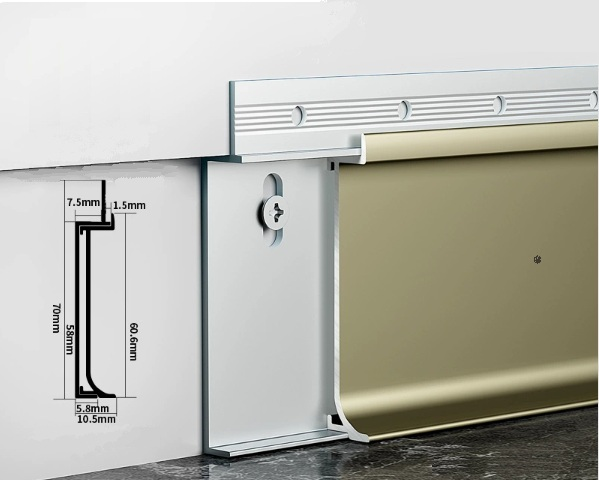

- Visible height of cover panel: 20mm/ 30mm/ 40 mm / 50 mm / 60 mm / 80 mm (customizable)

- Standard bar length: 2.5 m, cut‑to‑length available

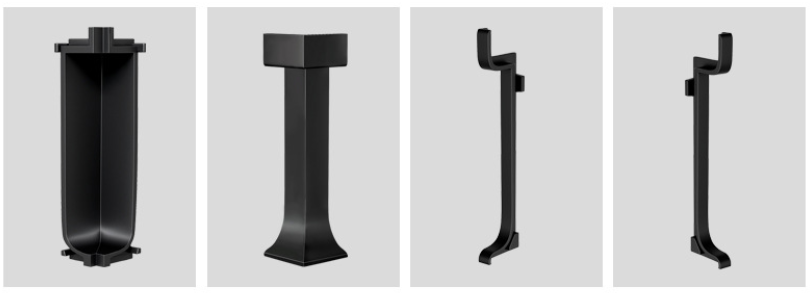

- Accessories: internal corner, external corner, straight joiner, end caps.

Installation Notice (Critical for Gypsum‑Board Wall)

Must install base profile BEFORE gypsum‑board closing & plastering work. Cannot be retrofitted on finished painted drywall.

1. Fix the embedded base profile onto steel studs with self‑tapping screws at spacing ≤400 mm. Where studs are unavailable, use butterfly‑type gypsum‑board wall anchors for reinforcement. **Do not fasten only to gypsum‑board paper surface**.

2. Apply fiberglass anti‑cracking mesh along both sides of base flange before plaster skim coat.

3. Complete plastering and wall finishing first, then clip the decorative cover onto the base profile.

4. Apply neutral sanitary caulk along the top seam to block moisture ingress.
